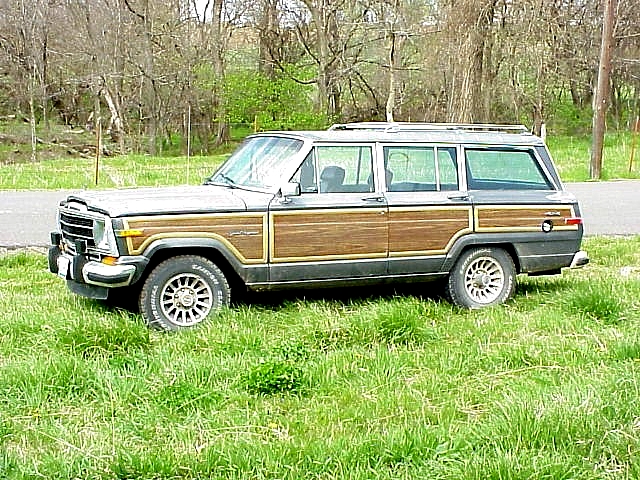

I bought this thing in February of 2000. It has a swapped in 401 with
a Carter carb and MSD Ignition. As of 3-24-01 it has a 3 or 4 inch Superlift kit, a
3" body lift and 33" BF Goodrich MTs wraped around AE-639 Eagle Alloy wheels.
This is my daily driver and part time tow vehicle for my CJ-7. As of 12-12-00 it has about
167,000 miles on it.
I found a 90' Wagoneer in Dallas on
12-16-00 with 33" BFG Mud Terrain on it for $1200. It had been rolled so I used the

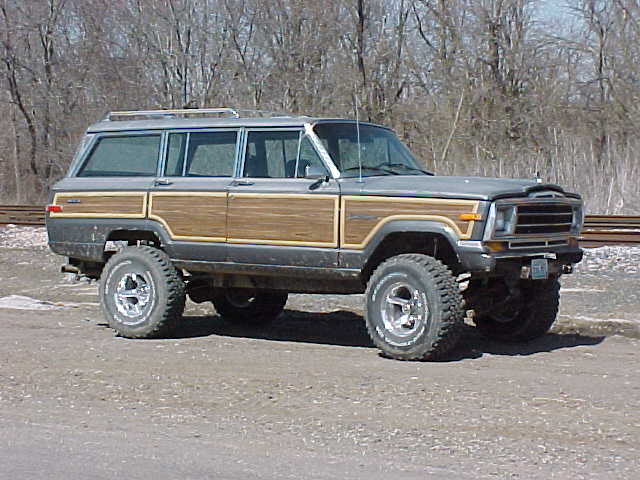

lift and tires on my Wagon. So finally I have 33's on my FSJ. Here are some pics
of the Jeep I bought.

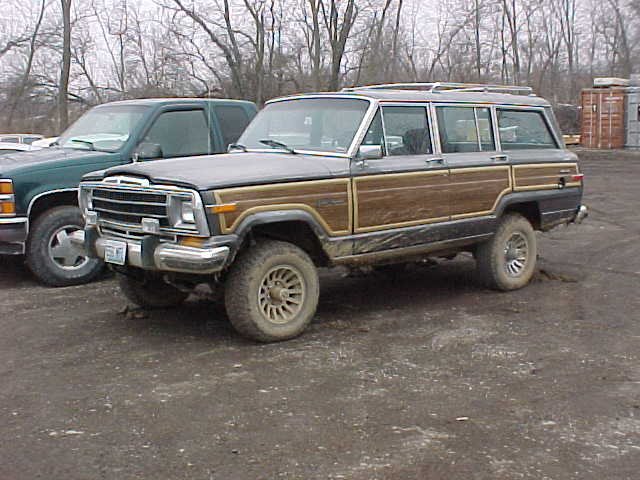

With the suspension
lift, I did not lengthen the driveshafts. They seemed to be fine, and I have had no
problems yet. I put on a droped pitman arm. Also I put on braided steel brake lines. With
the body lift, I had to extend the transmission shift linkage with a 3" rod. The kit
I bought did not have it included, so I used a piece of rod that I had laying around. The
T-case linkage did not need lengthened. The shifter handle will swing a little lower, but
not cause a problem.
Also the gas tank is connected
to the body. I had to fab a mount to lower it also. I bent a piece of sheet metal into a Z
shape, and it worked pretty good. Of course with these Jeeps fighting the body mounts is
the norm. I had to drill a hole above the two rear mounts to get to them. Some bolts will
come right out and some will probably break off. If they do, try to heat up the bolt with
a torch and grab it with a pair of pliers or visegrips.
Raising the rear bumper is not
that hard. Unbolt the bracket from the frame, and reweld it 3" higher. You could
drill new holes and bolt it on also. The front bumper is all together different because it
bends under the frame. I have raised the rear but not the front. I am seriously thinking
of puting on some prerunner bumpers. Not to many companies make aftermarket parts for
these rigs. So some fabing is in order.
|
